Vertical Steam Boilers
    Our Vertical Steam Boilers

    Australia-Wide Vertical Steam Boilers

    Quality-Built Vertical Boilers

    The vertical water tube boiler is built in our Brisbane work shop and has been built for more than 30 years. It is a proven performer with a small foot print and available in sizes from 60KW thru to 1250KW.

    All made with the highest quality Australian and German tube with features that include, easy to maintain, efficient to run, no boiler operators ticket required. We use all locally sourced materials and all our vessels are approved as per all required Australian Standards.

    The VWT range is very popular with Brewers, Distillers, Food processors, hospitals and wherever space is an issue. VWT boilers can grow with your company or give you great reliability and back up with multiple boiler system, all boilers can fire on Natural gas, LPG, Diesel or Bio-Gas All these boilers have been exported to many countries around the world and perform admirably.

    The Best Aussie Beers Are Brewed with the Best Aussie Made Boilers
    East Coast Steam

    Vertical Boiler Information

    MODEL - 6VWT

    SIZE: 60KW
    FUEL INPUT: 27OMj/h
    STEAM OUTPUT: 92Kg/h
    OVERALL HEIGHT: 1650mm
    OVERALL WEIGHT: 750KG
    BASIC FOOTPRINT: 950mm x 950mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 10VWT

    SIZE: 100KW
    FUEL INPUT: 450Mj/h
    STEAM OUTPUT: 154Kg/h
    OVERALL HEIGHT: 1850mm
    OVERALL WEIGHT: 950KG
    BASIC FOOTPRINT: 1050mm x 1050mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 15VWT

    SIZE: 150KW
    FUEL INPUT: 675Mj/h
    STEAM OUTPUT: 232Kg/h
    OVERALL HEIGHT: 2000mm
    OVERALL WEIGHT: 1000KG
    BASIC FOOTPRINT: 1050mm x 1050mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 20VWT

    SIZE: 200KW
    FUEL INPUT: 900Mj/h
    STEAM OUTPUT: 309Kg/h
    OVERALL HEIGHT: 2300mm
    OVERALL WEIGHT: 1500KG
    BASIC FOOTPRINT: 1150mm x 1150mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 25VWT

    SIZE: 250KW
    FUEL INPUT: 1125Mj/h
    STEAM OUTPUT: 386Kg/h
    OVERALL HEIGHT: 2350mm
    OVERALL WEIGHT: 2200KG
    BASIC FOOTPRINT: 1250mm x 1250mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 30VWT

    SIZE: 300KW
    FUEL INPUT: 1350Mj/h
    STEAM OUTPUT: 463Kg/h
    OVERALL HEIGHT: 2500mm
    OVERALL WEIGHT: 2400KG
    BASIC FOOTPRINT: 1400mm x 1400mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 35VWT

    SIZE: 350KW
    FUEL INPUT: 1575Mj/h
    STEAM OUTPUT: 541Kg/h
    OVERALL HEIGHT: 2600mm
    OVERALL WEIGHT: 2500KG
    BASIC FOOTPRINT: 1400mm x 1400mm
    MAXIMUM STANDARD PRESSURE: 1000KPA

    MODEL - 40VWT

    SIZE: 400KW
    FUEL INPUT: 1800Mj/h
    STEAM OUTPUT: 616Kg/h
    OVERALL HEIGHT: 2700mm
    OVERALL WEIGHT: 2550KG
    BASIC FOOTPRINT: 1400mm x 1400mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 1750KPA

    MODEL - 100VWT

    SIZE: 500KW
    FUEL INPUT: 2250Mj/h
    STEAM OUTPUT: 773Kg/h
    OVERALL HEIGHT: 2450mm
    OVERALL WEIGHT: 2700KG
    BASIC FOOTPRINT: 1650mm x 1650mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 1750KPA

    MODEL - 60VWT

    SIZE: 600KW
    FUEL INPUT: 2700Mj/h
    STEAM OUTPUT: 928Kg/h
    OVERALL HEIGHT: 2800mm
    OVERALL WEIGHT: 2900KG
    BASIC FOOTPRINT: 1650mm x 1650mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 1750KPA

    MODEL - 75VWT

    SIZE: 750KW
    FUEL INPUT: 3375Mj/h
    STEAM OUTPUT: 1160Kg/h
    OVERALL HEIGHT: 3050mm
    OVERALL WEIGHT: 3200KG
    BASIC FOOTPRINT: 1650mm x 1650mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 1750KPA

    MODEL - 100VWT

    SIZE: 1000KW
    FUEL INPUT: 4500Mj/h
    STEAM OUTPUT: 1547Kg/h
    OVERALL HEIGHT: 3200mm
    OVERALL WEIGHT: 4200KG
    BASIC FOOTPRINT: 1800mm x 1800mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 2800KPA

    MODEL - 125VWT

    SIZE: 1250KW
    FUEL INPUT: 5625Mj/h
    STEAM OUTPUT: 1956Kg/h
    OVERALL HEIGHT: 3600mm
    OVERALL WEIGHT: 4500KG
    BASIC FOOTPRINT: 1900mm x 1900mm
    MAXIMUM STANDARD PRESSURE: 1000KPA
    HIGH PRESSURE: 2800KPA
    australian flag and country
    • All the VWT range is rated from an at 100 °C feed water temperature
    • Available fuel types as standard natural gas, LPG and diesel
    • Bio-gas available as optional including duel fuel
    • More comprehensive information and diagrams are available on application
    • 100VWT

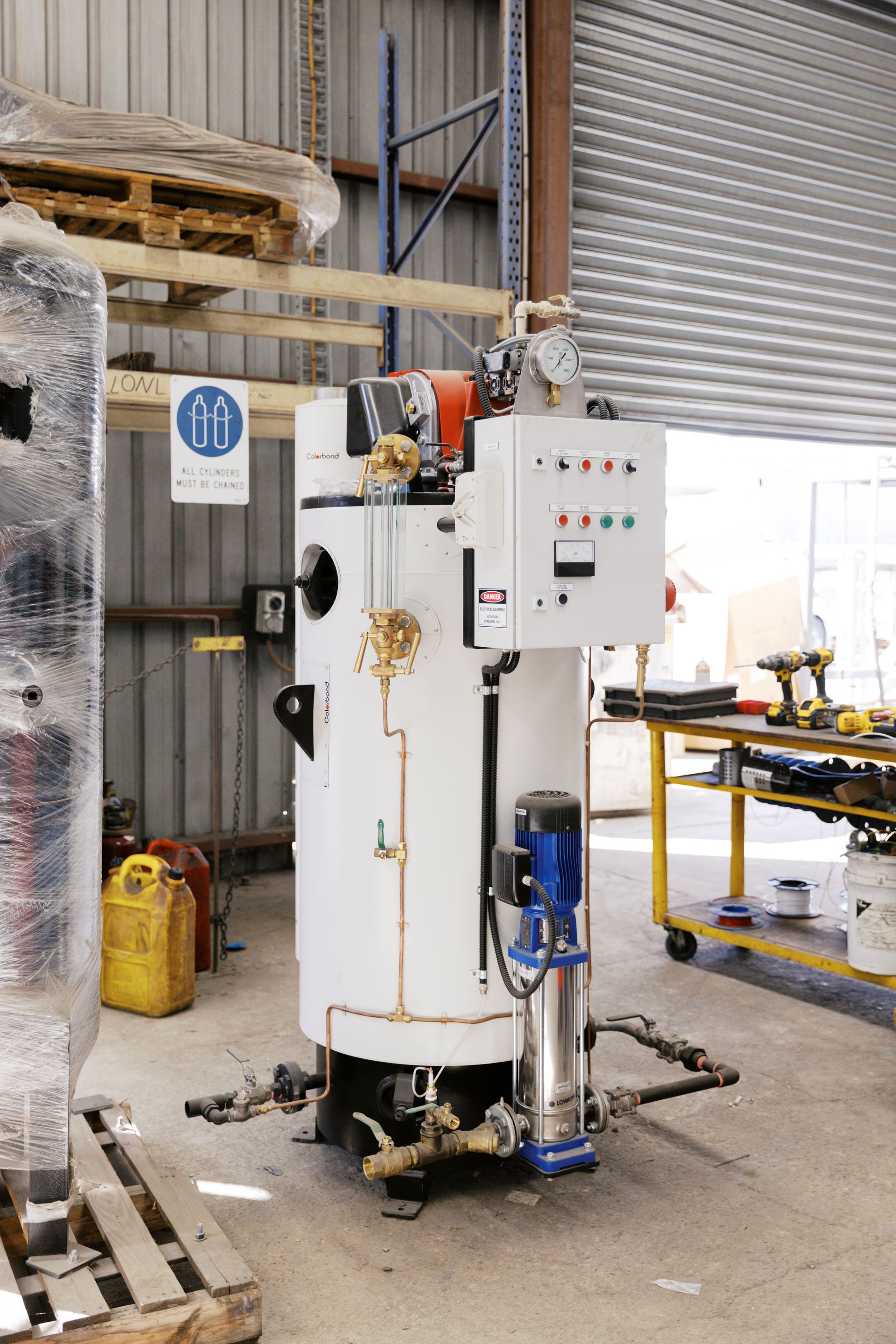

    vertical boiler
    Our Boilers Are Efficient to Run and Easy to Maintain
